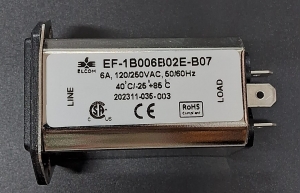

EF-1B006B02E-B07 (EP-361-6-MCE) |
|
|
|
EMI/RFI Filter, Panel Mount, 1Ø, 6A, 120/250VAC,
50/60Hz, CE, CSA & RoHS with MOV. |
| Mounting : |
Panel-type, Front / Rear |
| High Voltage test for 60 sec.: |
2 KVAC between P & N shorted together & Earth |
| Voltage Drop: |
1 Volt . max. |
| Insulation Resistance at 500 VDC: |
300 M ohms min. between P & N shorted together & Earth |
| Rated Voltage: |
250V AC, 50Hz, 1 Phase . |
| Rated Current: |
6 Amp with surge suppresso |
| Output Connection: |
Fast On 6.3 X 0.8 mm / Solder-type |
| Operating Temperature Range: |
0 to 85 Deg. C. |
| Input Connection: |
IEC 320 Inlet, 10A |
| Leakage Current: |
2 x 0.3 mA |
| Application: |
Computers, Office Equipment, Power Supplies |
|
|
|
