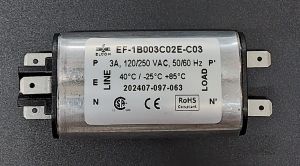

EF-1B003C02E-C03 (EP-422-3-MCE) |
|
|
|
EMI/RFIFilter,ChassisMount,1Ø,3A,120/250VAC,
50/60Hz, CE, CSA & RoHS With MOV In Oval Can. |
| Mounting : |
Panel / Chassis-type |
| High Voltage test for 60 sec.: |
2 KVAC between P & N shorted together & Earth |
| Voltage Drop: |
1 Volt . max. |
| Insulation Resistance at 500 VDC: |
300 M ohms min. between P & N shorted together & Earth |
| Rated Voltage: |
250V AC, 50Hz, 1 Phase . |
| Rated Current: |
3 Amp with surge suppresso |
| Output Connection: |
Solder-type |
| Operating Temperature Range: |
0 to 85 Deg. C. |
| Input Connection: |
Solder-type |
| Leakage Current: |
2 x 0.3 mA |
| Application: |
Domestic Appliances, Scales, Electronic Control Systems |
|
|
|
