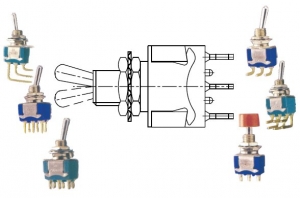

M - Series Toggle Switches |
|
|
|
Elico make Professional Grade Toggle Switches for use in Telecommunication, Instrumentation, Electronic Equipment and Automobile fields.
Please contact for full catalog |
| Contact Rating: |
1.5A @ 250VAC |
| Actuator Size: |
Standard Toggle, Short (Small) Toggle, Bulldog (Thick) Toggle, Caped Long Toggle, Standard Plunger, Lock Plunger, |
| Colors: |
Black, Red, Blue, White, Green |
| Caps / Buttons: |
Protection Cap, Toggle Boot, Plastic Cap, Plastic Button |
| Actuators: |
Toggle / Plunger |
| Sealing: |
Non-Sealing / Toggle and Panel Sealing |
| Switching Function: |
ON-NONE-ON / ON-OFF-ON / (ON)-OFF-(ON) / ON-OFF-(ON) / ON-NONE-(ON) |
| Contact Arrangement: |
SPDT / DPDT / SPST / DPST |
| Termination: |
Solder Lug, PCB Terminal Straight, PCB Terminal Right Angle Horizontal, PCB Terminal Right Angle Vertical |
| Bush: |
D-Cut, Slot, Plain |
|
|
Part numbers and configurations
MTA 101-ON-NONE-ON
MTA 111-ON-NONE-ON
MTS 101-ON-NONE-ON
MTR 101-ON-NONE-ON
MTV 101 ON-NONE-ON
MTA 102-ON-NONE-ON-NON-OFF-ON
MTA 103-(ON)-OFF-(ON)
MTA 113
MTA 104-ON-OFF-(ON)
MTA 105-ON-NONE-(ON)
MTA 115
MTA 112
MTA 114
MTS 102
MTS 103
MTS 104
MTS 105
MTR 102
MTR 103
MTR 104
MTR 105
MTV 103
MTV 104
MTV 105
MTV 102 |
|
