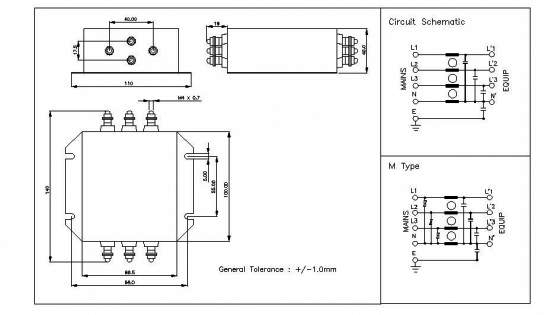

EP-355

Part Nos. - EF-3P003D01E-C71 - EMI/RFI Filter, Chassis Mount, 3Ø, 3A, 250(P-N), 440(P-P) VAC, 50/60Hz, CE, CSA & RoHS. EF-3P003D02E-C71 - EMI/RFI Filter, Chassis Mount, 3Ø, 3A, 250(P-N),440(P-P) VAC, 50/60Hz, CE, CSA & RoHS with MOV. EF-3P006D01E-C71 - EMI/RFI Filter, Chassis Mount, 3Ø, 6A, 250(P-N),440(P-P) VAC, 50/60Hz, CE, CSA & RoHS EF-3P006D02E-C71 - EMI/RFI Filter, Chassis Mount, 3Ø, 6A, 250(P-N),440(P-P) VAC, 50/60Hz, CE, CSA & RoHS with MOV
Mounting :	Chasis-type
High Voltage test for 60 sec.:	2 KVAC between P & N shorted together & Earth
Voltage Drop:	1 Volt . max.
Insulation Resistance at 500 VDC:	300 M ohms min. between P & N shorted together & Earth
Rated Voltage:	440(P-P), 250 (P-N) VAC, 50Hz, 3 Phase
Rated Current:	3 and 6 Amp.
Output Connection:	Screw Lead Through M-4
Operating Temperature Range:	0 to 85 Deg. C.
Input Connection:	Screw Lead Through M-4
Leakage Current:	2 x 0.3 mA
Application:	General Electronic, Telecom
