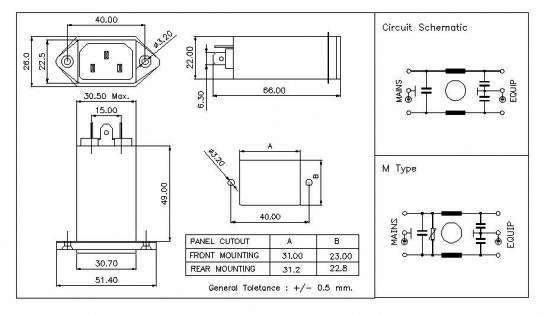

EP-322 EF-1BXXXBXXE-B03

RFI/EMI Filter, Panel type EF-1B001B01E-B03 - EMI/RFI Filter, Panel Mount, 1Ø, 1A, 120/250VAC, 50/60Hz, CE, CSA & RoHS EF-1B001B02E-B03 - EMI/RFI Filter, Panel Mount, 1Ø, 1A, 120/250VAC,50/60Hz, CE, CSA & RoHS with MOV EF-1B003B01E-B03 - EMI/RFI Filter, Panel Mount, 1Ø, 3A, 120/250VAC, 50/60Hz, CE, CSA & RoHS EF-1B003B02E-B03 - EMI/RFI Filter, Panel Mount, 1Ø, 3A, 120/250VAC,50/60Hz, CE, CSA & RoHS with MOV EF-1B006B01E-B03 - EMI/RFI Filter, Panel Mount, 1Ø, 6A, 120/250VAC,50/60Hz, CE, CSA & RoHS EF-1B006B02E-B03 - EMI/RFI Filter, Panel Mount, 1Ø, 6A, 120/250VAC,50/60Hz, CE, CSA & RoHS with MOV
Mounting :	Panel-type, Front / Rear
High Voltage test for 60 sec.:	2 KVAC between P & N shorted together & Earth
Voltage Drop:	1 Volt . max.
Insulation Resistance at 500 VDC:	300 M ohms min. between P & N shorted together & Earth
Rated Voltage:	250V AC, 50Hz, 1 Phase .
Rated Current:	1, 3, 6 amp
Output Connection:	Fast On 6.3 X 0.8 mm / Solder-type
Operating Temperature Range:	0 to 85 Deg. C.
Input Connection:	IEC 320 Inlet, 10A
Leakage Current:	2 x 0.3 mA
Application:	Computers, Office Equipment, Power Supplies
