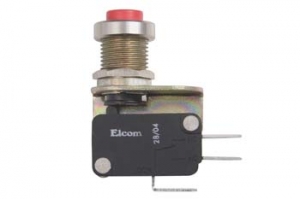

Micro Switch, PanelMount,6A,250VAC, with mounting
bracket, NO/NC. |
| Contact Arrangement: |
NO / NC |
| Permissible Temp For With/Without Load: |
-20 deg. C to +85 deg. C. |
| Permissible Temp For Soldering: |
270 deg. C for 5 sec. max. |
| Terminals: |
Solder - type / Snap-on 4.80 |
| Insulation Resistance(Min): |
100 M Ohms at 500 VDC |
| H. V. Breakdown Test: |
1 KVAC For 1 Minute. |
| Electrical Life: |
1,00,000 Cycles |
| Current Carrying Parts: |
Terminals - Brass, Tin plated |
| Contact Resistance(Max, Initial): |
10 m Ohms |
| Colours Available For Actuator: |
Rd / Bk / Gn |
| Contact & Voltage Rating: |
6A, 250V AC . |
| Switch Type: |
Momentary |
| Mechanical Life: |
1,00,000 Cycles |
|
|
|
