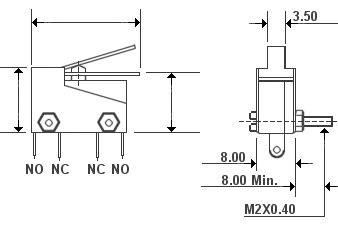

MS-1 with Lever |
| Contact Arrangement: |
NO/NC |
| Permissible Temp For With/Without Load: |
-20 deg. C. to +85 deg. C . |
| Permissible Temp For Soldering: |
270 deg. C. / 5sec. max . |
| Operating Force: |
200 gms. +/-50gms . |
| Material: |
PBT (Black) . |
| Terminals: |
Solder - type |
| Product Weight: |
2.9 gms. Max. . |
| Insulation Resistance(Min): |
100 M Ohms at 500 VDC |
| H. V. Breakdown Test: |
1 KVAC For 1 Minute |
| Electrical Life: |
10000 Cycles Min. |
| Current Carrying Parts: |
Terminals - Brass, Silver plated |
| Contact Resistance(Max, Initial): |
20 m Ohms |
| Contact & Voltage Rating: |
4 A, 250V AC |
| Switch Type: |
Momentary SPDT Micro Switch |
| Mechanical Life: |
50,000 Cycles min . |
