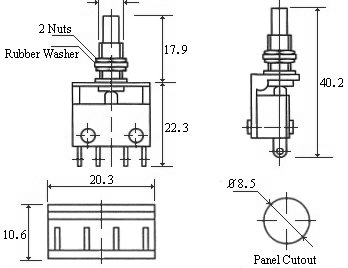

PMS-1 - Micro Switch, Panel Mount, 4A, 250VAC, Pin Actuated |
| Contact Arrangement: |
NO / NC |
| Permissible Temp For With/Without Load: |
-20 deg. C to +85 deg. C. |
| Permissible Temp For Soldering: |
270 deg. C for 5 sec. max. |
| Material: |
Polyamide |
| Terminals: |
Solder - type |
| Product Weight: |
6.3 gm . |
| Insulation Resistance(Min): |
100 M Ohms at 500 VDC |
| H. V. Breakdown Test: |
1 KVAC For 1 Minute . |
| Electrical Life: |
10000 Cycles Min. |
| Current Carrying Parts: |
Terminals - Brass, Silver plated |
| Contact Resistance(Max, Initial): |
10 m Ohms |
| Colours Available For Actuator: |
Rd |
| Contact & Voltage Rating: |
4 A, 250V AC . |
| Switch Type: |
Micro Switch With Actuator, SPDT Momentary |
| Mechanical Life: |
50,000 Cycles |
