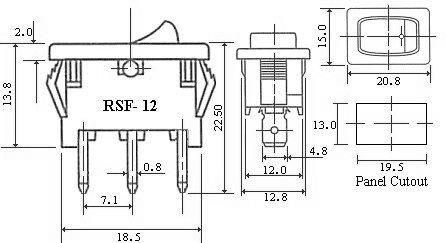

RSF-1204 - Rocker Switch, Panel Mount/Snap in, SPDT, 4A, 250VAC.
RSF-1206 - Rocker Switch, Panel Mount/Snap in, SPDT, 6A, 250VAC. |
| Contact Arrangement: |
SPDT |
| Mounting: |
Panel, Snap-in type |
| Permissible Temp with / without Load: |
-20 deg. C to + 85 deg. C |
| Permissible Temp For Soldering: |
270 deg. C for 5 sec. max. |
| Test Specifications: |
1EC - 1058 - 1 : 1996 . |
| Terminal Style: |
Solder-type / Fast-on 4.8 x 0.8 |
| Product Weight: |
3.3 gm. . |
| Material For Housing: |
Nylon |
| Insulation Resistance (Min.): |
100 M Ohms at 500 VDC |
| H. V. Breakdown Test: |
1.5 KVAC For 1 Minute |
| Electrical Life: |
10000 Cycles . |
| Material - Terminals: |
Terminals-Brass / Copper, Silver plated |
| Contact Resistance(Max, Initial): |
10 m Ohms |
| Colours Available For Rocker: |
Rd / Bk / Gn / Yl / Wh |
| Colours Available For Housing: |
Bk |
| V/A Rating: |
4 A, 250V AC |
| Type: |
Non-Illuminated |
| Panel Thickness: |
3.00 max. |
