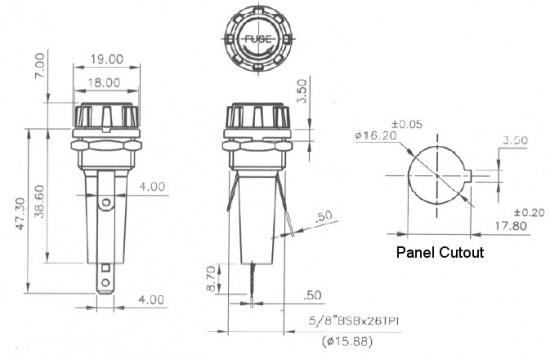

Fuse Holder, Panel Mount/ScrewType,10A,250VAC, for
6.3 x 32mm fuse link, CE. |
| Mounting Style: |
Panel, Screw-type |
| Permissible Temp. With / Without load: |
0 to 85 deg. C |
| Permissible Temp. For Soldering: |
270 deg. C for 5 Sec. max. |
| Panel Thickness(Max): |
NA |
| Material: |
Nylon |
| Insulation Resistance: |
1000 M Ohms min. |
| H. V. Break Down: |
2 KV AC for 1 minute |
| Current Carrying Parts: |
Brass, Tin plated |
| Contact Resistance (Initial): |
10 m ohms max. |
| Fuse Link Size: |
6.3 x 32 |
| Rated Current / Voltage: |
10A, 250 VAC |
| Terminals: |
Solder-type |
|
|
|
