Just Connect Power Cords » Power Cords » JC-1 (3 Pin Top + Open)

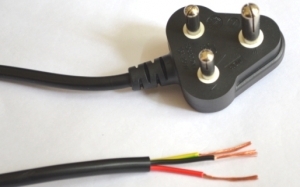

JC-1 (3 Pin Top + Open)

JC-1 (3 Pin Top + Open)

Plug Model : IN 6 A3

Connector Standard: IS 1293 : 2005
Length: 0.5M, 1M, 1.5M, 1.8M, 2M, 2.5M, 3Meter or as per customer requirement
Other side: As per customer requirement
Colour: Black (Can be made as per customer requirements)
Cable Jacket: PVC Type ST1 as per IS 5831- 84
Insulation: PVC Type - A as per IS 5831 - 84
Conductor: Annealed Bare Copper
Pins: Brass Pins with Nickel coated
Safety marking: ISI mark available in 0.75 Sq.mm & CE
Current Ratings: 6A & 250V~
Type: 3 pIn top + Other end open
Cable: # 11/0.2 - 0.3 sq.mm - Equivalent to 14/38 # 14/0.2 - 0.4398 sq.mm - Equivalent to 14/36 - 4 Amps # 16/0.2 - 0.5 sq.mm - 5Amps / 6Amps # 24/0.2 - 0.75 sq.mm - 6Amps

Plug Model : IN 6 A3

Indian 6Amp Plug - Power Supply Cordset

Available in following current ratings
# 11/0.2 - 0.3 sq.mm - Equivalent to 14/38
# 14/0.2 - 0.4398 sq.mm - Equivalent to 14/36 - 4 Amps
# 16/0.2 - 0.5 sq.mm - 5Amps / 6Amps
# 24/0.2 - 0.75 sq.mm - 6Amps
