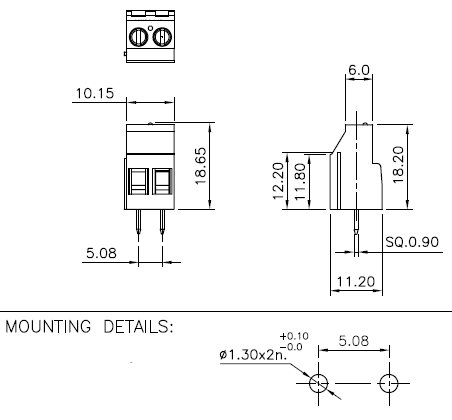

2 way green connector, equivalent to Phoenix MKDS series |
| Type: |
PCB Mounting |
| Contact pitch: |
5.08mm |
| Permissable Temp.With / Without Load: |
-20 deg.C to +65 deg. C / For soldering - 270 deg.C for 5 sec. max. |
| Terminals: |
Solder - Type |
| Mounting: |
PCB Type |
| Test Specification: |
JSS-52720, IEC-60947-7-1 |
| Material: |
Body - Nylon-66 |
| Insulation Resistance(Min): |
100 M Ohms Min. at 500 VDC |
| H. V. Breakdown Test: |
1 KV AC |
| Current Carrying Parts: |
Terminal - Brass, Tin Plating / Sqare Barrel - Brass, Nickel Plating / Screw - Nickel plated or Steel. Zinc Plated |
| Contact Resistance: |
5 m Ohms Max. |
| Current Rating: |
10Amps, 250 VAC |
| Wire Size with Protector: |
1.5 sq.mm Max. |
|
|
5.08mm 2 way green connector, equivalent to Phoenix MKDS series |
|
