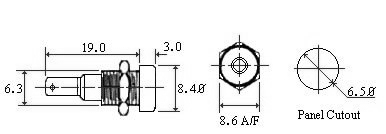

BS-2

C-DOT Approved
Diameter:	2 mm
Available Colours:	Red,Black,Green,Blue,Yellow,White
Breakdown Voltage:	500 V AC at 1 min.
Contact Resistance:	5 m Ohms max.
Current Rating:	7 Amps.
Insulation Resistance:	100 M Ohms Min., at 500 V DC
