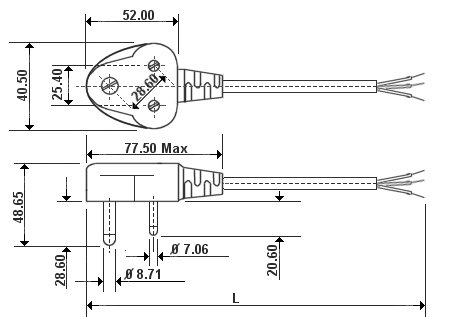

cable with Moulded 3 Pin Plug |
| Current Rating: |
10 Amps @ 250V AC |
| Permissible Temp For With/Without Load: |
-20 deg. C. to +85 deg. C |
| Material - Contact: |
Brass, Nickel Plated |
| Material - Conductor: |
Copper |
| Material - Cable: |
PVC |
| Length: |
1.5 mtr. |
| Insulation Resistance: |
100 M Ohms Min. at 500 V DC |
| H. V. Break Down Test: |
1.5 KV AC at 500 V DC |
| Conductor Size: |
1 sq.mm. (dia.0.20 x 32 Strands) |
|
|
|
|
