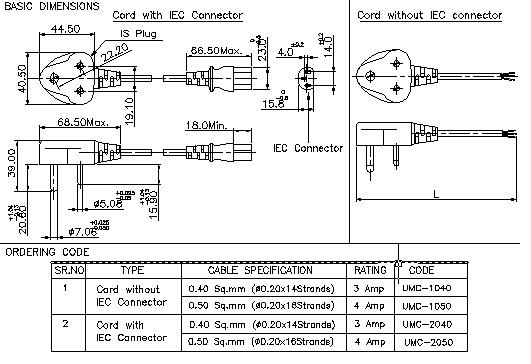

UMC-1040, 2040, 1050, 2050

Cable with Moulded 3 Pin Plug at one end & other end free - UMC 1 series Cable with moulded plug at one side & IEC connector at other end - UMC 2 Series
Current Rating:	3 Amps 250V AC / 4 Amp 250 VAC
Permissible Temp For With/Without Load:	-20 deg. C. to +85 deg. C
Material - Contact:	Brass, Nickel Plated
Material - Conductor:	Copper
Material - Cable:	PVC
Length:	1.5 mtr.
Insulation Resistance:	100 M Ohms Min. at 500 V DC
H. V. Break Down Test:	1.5 KV AC at 500 V DC
Conductor Size:	0.40 sq.mm. / 0.5 Sq. mm

Elcom
