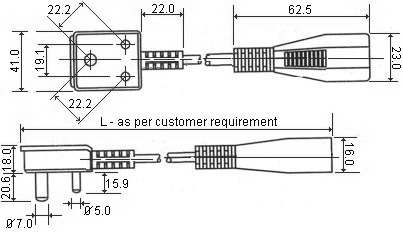

Power Cord with moulded 3 Pin Plug with Straight Connector |
| Current Rating: |
6 Amps @ 250V AC |
| Temp. Withstand: |
70 Deg. C |
| Conductor Resistance: |
26 m Ohms |
| Length: |
Available in 1.5, 2, 2.5, 3 Meters Total Length Including End Mouldings . |
| Insulation Resistance: |
100 M Ohms |
| H. V. Break Down Test: |
1.5 KV AC . |
| Conductor Size: |
24 Strands 36 SWG(0.20mm) . |
| Test Specification: |
1EC - 60799/1EC - 320 - 1/1EC - 83 |
|
|
|
|
