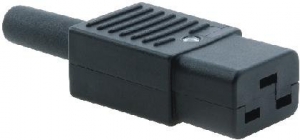

IEC Rewirable connector |
| Type: |
Rewirable Connector |
| V / A Rating: |
16 Amps @ 250 VAC |
| Contact Resistance (Initial): |
10 mohms Max. |
| Insulation Resistance @ 500 VDC: |
100 Mohms Min. |
| H.V. Breakdown Test (for 1 Minute): |
2 KV AC |
| Terminals: |
Screw Type |
| Permisibble Temp. (With / Without Load): |
-20 deg.C to + 85 deg.C |
| Material (Body, Cable Lock): |
Nylon |
| Material (Cable Guide): |
PVC |
| Material (Contacts - Terminal): |
Brass, Nickel Plated |
| Material (Terminal Screw): |
M.S. Zinc Plated |
| Reference Standards: |
IEC - 60320 - 2 -2 |
