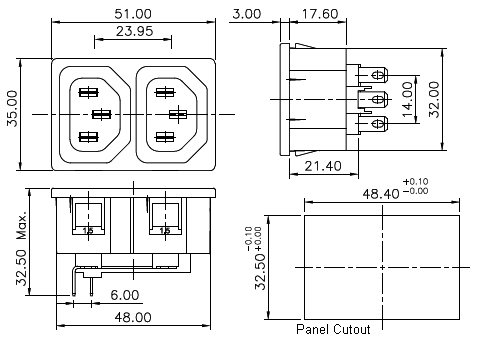

Snap mounting IEC 2 way outlet |
| Mounting Style: |
Panel, Snap-in type |
| Terminals: |
Solder-type / Fast-on 4.8x0.8 |
| Reference Standard: |
IEC 60320-1, UL-498, CSA : C22.2no.182.3 |
| Permissible Temp With/Without Load: |
0 deg. C to +70 deg. C |
| Permissible Temp For Soldering: |
270 deg. C for 5 seconds max. |
| Panel Thickness: |
Standard - 1.5 (C), Other (on request) - 1.2(B) |
| Material - Terminals: |
Copper alloy, Tin plated |
| Material - Body: |
Nylom-6, GF 20%, V2 |
| Insulation Resistance at 500 V DC: |
1000 M Ohms min. |
| H. V. Break Down Test: |
2 KV AC for 1 minute |
| Contact Resistance (Initial): |
10 m Ohms Max. |
| Current & Voltage Rating: |
10 Amps (VDE), 15 Amp (UL, CSA) 250 VAC |
| Approvals: |
VDE, CE, UL(C,US) |
|
|
|
|
