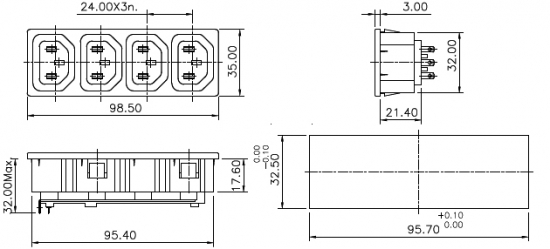

Snap mounting IEC 4 way oulet |
| Mounting Style: |
Panel, Snap-type |
| Terminals: |
Solder-type or Fast-on 2.8/4.8 |
| Reference Standard: |
IEC 60320, UL 498 |
| Permissible Temp With/Without Load: |
0 deg. C to +70 deg. C |
| Permissible Temp For Soldering: |
270 deg. C for 5 sec. Max. |
| Panel Thickness: |
1.5(C), 1.8(D), 2.0(E),3.0(H) |
| Material - Terminals: |
Copper alloy, Tin plated |
| Material - Body: |
Nylon-6 GF 20%, V2 |
| Insulation Resistance at 500 V DC: |
1000 M Ohms Min. |
| H. V. Break Down Test: |
2 KVAC |
| Contact Resistance (Initial): |
10 m Ohms Max. |
| Current & Voltage Rating: |
10 Amps (VDE), 15 Amp (UL, CSA) 250 VAC |
