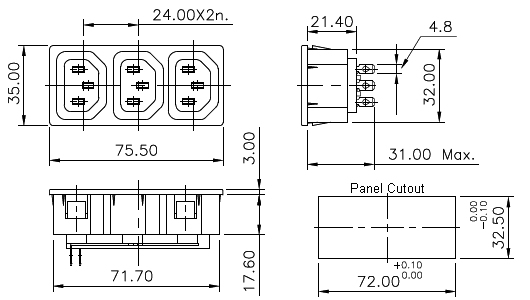

Snap mounting IEC 3 Way Outlet |
Mounting Style: |
Panel, Snap-in type |
Terminals: |
Solder-type / Fast-on 4.8x0.8 |
Reference Standard: |
IEC 60320-1, UL-498, CSA-C22.2No.182.3 |
Permissible Temp With/Without Load: |
0 deg. C to + 70 deg. C |
Permissible Temp For Soldering: |
270 deg. C for 5 sec. Max. |
Panel Thickness: |
Standard - 1.5 (C), Other (on request) - 2.0(E) |
Material - Terminals: |
Copper alloy, Tin plated |
Material - Body: |
Nylon-6 GF 20%, V2 |
Insulation Resistance at 500 V DC: |
1000 M Ohms Min. |
H. V. Break Down Test: |
2 KV AC for 1 minute |
Contact Resistance (Initial): |
10 m Ohms Max. |
Current & Voltage Rating: |
10 Amps (VDE), 15 Amp (UL, CSA) 250 VAC |
