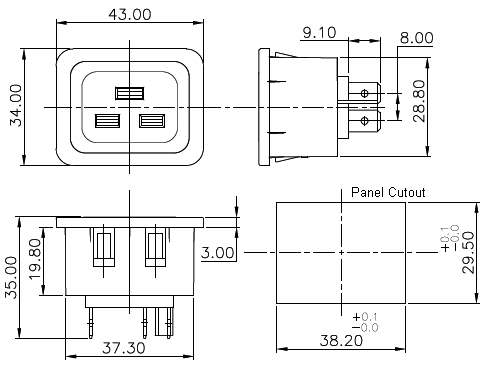

Snap mounting IEC outlet |
| Type: |
Mounting - Panel, Snap-in Type |
| V / A Rating: |
16 Amps @ 250 VAC |
| Contact Resistance (Initial): |
10 mohms Max. |
| Insulation Resistance @ 500 VDC: |
1000 Mohms Min. |
| H.V. Breakdown Test (for 1 Minute): |
2 KV AC |
| Terminals: |
Solder Type or Fast-on Type |
| Permisibble Temp. (With / Without Load): |
0 deg.C to 70 deg.C |
| Material (Body, Cable Lock): |
Nylon-6, GF20% |
| Material (Contacts - Terminal): |
Brass, Tin Plated |
| Reference Standards: |
IEC 60320 -2-2, UL-498, CSA:22.2 No. 182.3 |
