Gold / Silver or Tin Plated Contacts. Solderable (Phenolic / DAP Insulator) |
| Type: |

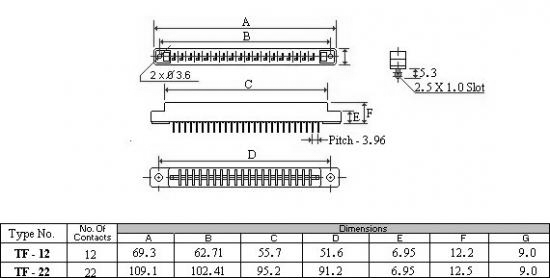

Printed Circuit Edge Connector With Tuning Fork Contact |
| Temperature(Max): |
80 Deg. C |
| Material Contacts: |
Phosphor Bronze, Gold, Silver or Tin Plated |
| Material Body: |
Phenolic/DAP |
| Insulation Resistance(Min): |
1000 M Ohms |
| H. V. Break Down: |
1.5 KV |
| Contact Resistance, Max(Initial): |
10 m Ohms |
| Card Thickness: |
1.42 mm - 1.8 mm |
| No. of Contacts: |
12, 22 |
|
|
|
|
