Solder Eyelets. Gold / Silver or Tin Plated (Phenolic or DAP Insulator) |
| Type: |

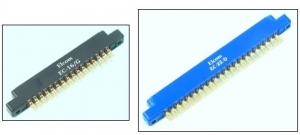

Single Sided Edge Connector, |
| Temperature(Max): |
80 Deg. C |
| V / A Rating: |
5 Amp. 250Vac |
| Mounting: |
Screw-type |
| Material Contacts: |
PB - Gold, Silver or Tin Plated |
| Material Body: |
Phenolic or DAP Insulator |
| Insulation Resistance(Min): |
1000 M Ohms |
| H. V. Break Down: |
1.5 KV |
| Contact Resistance, Max(Initial): |
10 m Ohms |
| Card Thickness: |
1.42 mm - 1.8 mm |
| No. of Contacts: |
12,16,22 |
| Terminals: |
Solder-type |
|
|
|
|
