Elcom » Connectors, Terminals » Terminals » PBT 90-2

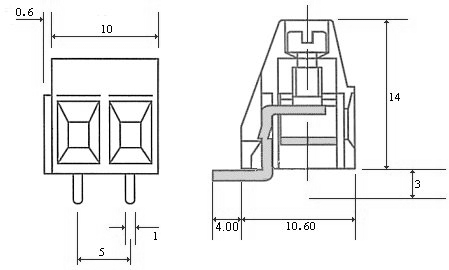

PBT 90-2

PBT 90-2 PBT 90-2
Type: PCB Mounting
Contact pitch: 5.00 mm
Terminals: Brass, Plating Tin
Material: Body - Polyamide. Screw - Steel, Zinc Plated
Insulation Resistance(Min): 1000 M Ohms
H. V. Breakdown Test: 2 KV/AC For 1 Minute .
Current Rating: 10 Amps @ 250V AC
Wire Size with Protector: 2.5 sq. mm. max.
