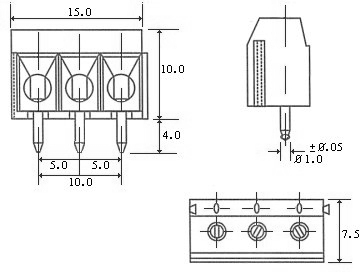

PCBT-3

PCBT-3 PCBT-3

CACT Approved

Type: PCB Mounting
Contact pitch: 5.08 mm
Terminals: Brass, Plating Tin
Product App. Weight(Max): 2.8 gm .
Material: Polyamide
Insulation Resistance(Min): 100 M Ohms
H. V. Breakdown Test: 1 KV/AC For 1 Minute
Approvals: CACT
Current Rating: 10 Amps @ 250V AC
Wire Size with Protector: 2.5 Square mm
