Elcom » Switches » Power Tool Switches » PTS-11

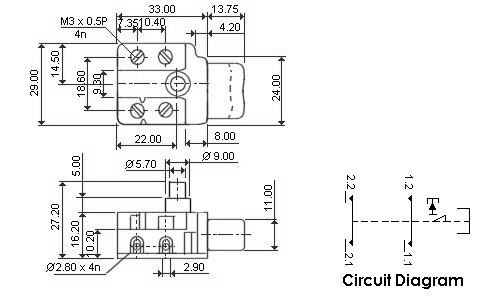

PTS-11

PTS-11 PTS-11

Power Tool Switch

Type: Momentary with Lock on Button, Double Pole, NO
Material - Terminals: Copper
Material - Plastic Parts: Nylon
Permissable Temp.With / Without Load: -20 deg. C to + 85 deg. C
Insulation Resistance after Humidity Test(95% RH, 27 deg. C 48 hrs): 20 M Ohms Min.
Stall Test (With Rotor Locked) for 10 Amp.: 50 Cycle Min. - on Period 0.5 sec. - Off period 9.5 sec.
Actuating Force: 25 +/- 3N (2.5 Kg +/-310gm)
Electrical Life: 50,000 Cycles Min.
Mechanical Life: 50,000 Cycles Min.
Terminals: Screw-type
H.V.Break Down Test (For 1 Minute): 4 KV
Insulation Resistance at 500 V DC: 100 M Ohms Min.
Contact Resistance (Initial): 20 m Ohms Max.
V/A Rating: 6(6)A 250V AC
Material - Contacts: Silver & Copper
