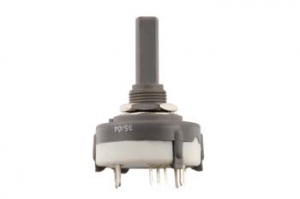

02 - 16 Positions Switch |
| Terminals(Min): |
Solder-type |
| Reference Standard: |
IEC-1058-1(1996) . |
| Permissible Temp. For Soldering: |
270 deg. C for 5 sec. max. |
| Permissible Temp For With/Without Load: |
-20Deg. C To +85Deg. C . |
| Mounting: |
Panel, Screw-type |
| Material Shaft: |
Polyamide |
| Material Current Carrying Parts: |
Copeer Alloy, Silver Plated |
| Material Body: |
Polyamide |
| Insulation Resistance at 500V DC(Min): |
1000 M Ohms |
| H. V. Break Down Test: |
250 VAC For 1 minute . |
| Electrical Life: |
10000 Cycles / Pole . |
| Contact Resistance(Max, Initial): |
20 m Ohms |
| Voltage Rating: |
150mA, 50V AC/DC |
