Elcom » Switches » Thumbwheel Swithces » TC-103
Request Sample Download catalog for TC-103 Download catalog for Thumbwheel Swithces

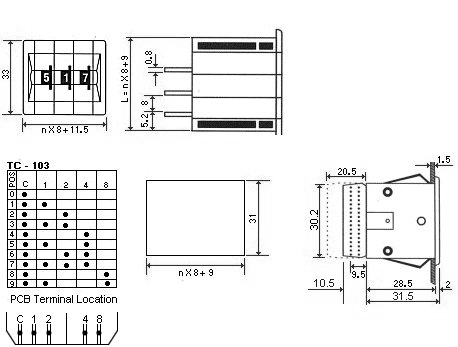

TC-103
TC-103 TC-103
Type: BCD
Contact Resistance: 200 m Ohms
Current Rating: 100 mA
Electrical Life: 10000 Cycles
Insulation Resistance(Min): 100 M Ohms
Mechanical Life: 50000 Cycles
Mounting: Snap In Panel Cutout .
Voltage Rating: 50 VDC
