Elcom » Switches » Key Lock Switches » KLS-2

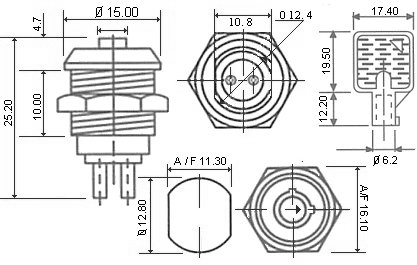

KLS-2

KLS-2 KLS-2
Switch Type: Hollow Key
Permissible Temp For Soldering: 270 deg. C for 5 sec. max.
Body: Mozak / Engineering Thermoplastic
Terminal Style: Solder-type
Key Combinations: Single
Insulation Resistance: 100 M Ohms
H. V. Breakdown Test: 1 KVAC For 1 minute .
Electrical Life: 10000 Cycles min.
Current Carrying Parts: Terminals-Brass, Silver plated
Contact Resistance(Max, Initial): 10 m Ohms
Contact & Voltage Rating: 0.5 A, 250V AC .
Contact Arrangement: SPST Key Lock Switch
Permissible Temp For With/Without Load: -20 deg. C to + 85 deg. C
