Elcom » Switches » Key Lock Switches » KLS-1/2

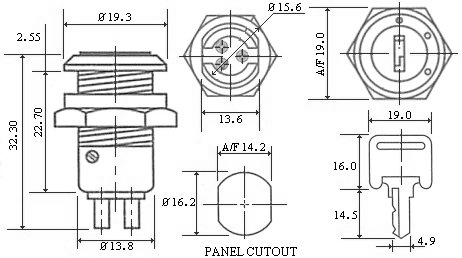

KLS-1/2

KLS-1/2 KLS-1/2
Switch Type: 2 Position
Permissible Temp For Soldering: 270 deg. C for 5 sec. max.
Body: Mozak / Engineering Thermoplastic
Terminal Style: Solder-type
Key Combinations: Upto 8
Insulation Resistance: 100 M Ohms
H. V. Breakdown Test: 1 KVAC For 1 minute
Electrical Life: 10000 Cycles min.
Current Carrying Parts: Terminals-Brass, Silver plated
Contact Resistance(Max, Initial): 10 m Ohms min.
Contact & Voltage Rating: 0.5 A, 250V AC
Contact Arrangement: SPST Key Lock Switch
Permissible Temp For With/Without Load: -20 deg. C to + 85 deg. C
