Elcom » Switches » Push Button Switches » PBS-2(R)

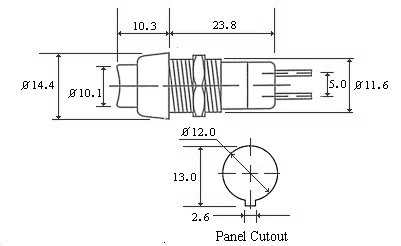

PBS-2(R)

PBS-2(R) PBS-2(R)
Switch Type: Latched
Permissible Temp For Soldering: 270 deg. C for 5 sec. max.
Permissible Temp For With/Without Load: -20 deg. C to +85 deg. C
Terminal Style: Solder-type
Colours Available For Housing: Bk
Colours Available For Rocker: Rd/Bk/Gn/Yl/Bl/Wh .
Product Weight: 4.6 gms
Mounting: Panel, Screw-type
Mechanical Life: 50,000 Cycles
Material - Terminals: Copper, Silver plated
Contact Arrangement: SPST
Contact & Voltage Ratings: 3 A, 250V AC
Contact Resistance(Max Initial): 10 m Ohms
Electrical Life: 10,000 Cycles .
H. V. Breakdown Test: 1 KVAC For 1 minute
Insulation Resistance at 500V DC (Min): 100 M Ohms
Material - Body: Nylon
