Elcom » Switches » Rocker Switches » RSF-11P

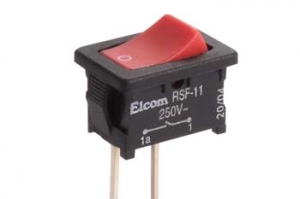

RSF-11P

RSF-11P
Contact Arrangement: SPST
Mounting: Panel, Snap-in type / PCB mounting
Permissible Temp with / without Load: -20 deg. C to + 85 deg. C
Permissible Temp For Soldering: 270 deg. C for 5 sec. max.
Test Specifications: 1EC - 1058 - 1 : 1996 .
Terminal Style: Solder-type
Material For Housing: Nylon
Insulation Resistance (Min.): 100 M Ohms at 500 VDC
H. V. Breakdown Test: 1.5 KVAC For 1 Minute
Electrical Life: 10,000 Cycles
Material - Terminals: Terminals-Brass / Copper, Silver plated
Contact Resistance(Max, Initial): 10 m Ohms
Colours Available For Rocker: Rd / Bk / Gn / Wh
Colours Available For Housing: Bk
V/A Rating: 4 A, 250V AC
Type: Switch with PCB mountable terminals
Panel Thickness: 3.00 max.
