Elcom » Fuse Holders, Lamp Holders » Fuse Holders » HFH-1

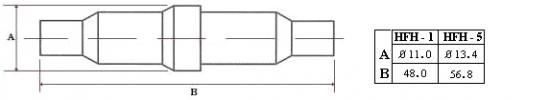

HFH-1

HFH-1 HFH-1
Mounting Style: In-line (Hanging)
Permissible Temp. With / Without load: -20 deg C to +85 Deg. C
Permissible Temp. For Soldering: 270 Deg. C for 5 seconds max.
Panel Thickness(Max): N.A.
Material: Polyamide G.F. / Polycarbonate
Insulation Resistance: 1000 M Ohms min.
H. V. Break Down: 2 KVAC For 1 Minute .
Current Carrying Parts: Brass, Tin Plated
Contact Resistance (Initial): 20 m Ohms max.
Cap Design: Screw-in
Fuse Link Size: 5 x 20 mm
Rated Current / Voltage: 4 Amps, 250V AC
Terminals: Solder-type
