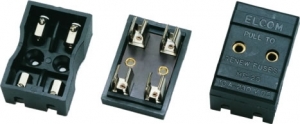

Dual Enclosure |

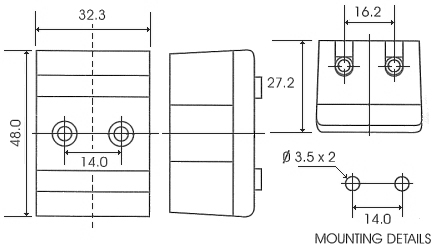

| Mounting Style: |
Chassis Mounting |
| Permissible Temp. With / Without load: |
-20 deg C to +85 Deg. C |
| Permissible Temp. For Soldering: |
270 Deg. C for 5 seconds max. |
| Panel Thickness(Max): |
N.A. |
| Material: |
Polyamide G.F. |
| Insulation Resistance: |
100 M Ohms min. |
| H. V. Break Down: |
2 KVAC For 1 Minute |
| Current Carrying Parts: |
Brass, Nickel Plated . |
| Contact Resistance (Initial): |
10 m Ohms max. |
| Cap Design: |
Press-on type |
| App. Weight(Gm): |
44.6 |
| Fuse Link Size: |
6.3 x 32 mm |
| Rated Current / Voltage: |
10 Amps, 250V AC |
| Terminals: |
Screw-in |
|
|
|
|
