| Mounting Style: |
Panel |
| Permissible Temp. With / Without load: |
-20 deg C to +85 Deg. C |
| Permissible Temp. For Soldering: |
270 Deg. C for 5 seconds max. |

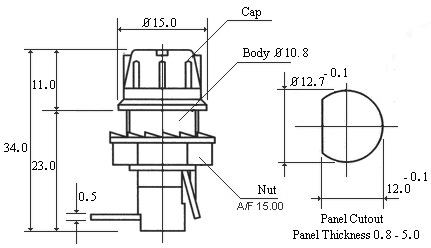

| Panel Thickness(Max): |
6.0 mm |
| Material: |
Polyamide G.F. . |
| Insulation Resistance: |
1000 M Ohms min. |
| H. V. Break Down: |
2 KV/AC For 1 Minute . |
| Current Carrying Parts: |
Brass, Tin Plated |
| Contact Resistance (Initial): |
10 m Ohms max. |
| Cap Design: |
Screw-In With Coin Slot . |
| App. Weight(Gm): |
6.0 . |
| Fuse Link Size: |
5 x 20 mm |
| Rated Current / Voltage: |
6.3 Amps, 250V AC |
| Terminals: |
Solder-type |
|
|
|
